• Started as a postdoc in Jo Handelsman's lab
• I have the ability to code and translate that ability to biologists - if we can develop the tools then surely others will benefit

• I don't like how others benchmark/validate methods
• My lab needs software to analyze data and the tools are either poorly developed/tested or not available


• Not programmers
  • 40% have no programming background
  • 33% know Perl
  • 35% know R
  • 10-20% know C/C++, Java, Python, SQL, or shell
• Probably uncomfortable with shell
  • 48% Windows
  • 33% Mac OSX
  • 45% Linux

• How do we react to foreign jargon?
  • Cloud?
  • Version control?
  • Dependencies?
  • JSON/HDFS/LNPR?
• Our goal is to meet the users where they are and bring them up. Not to make them feel dumb.
  • GUI
  • Examples and documentation
  • Forum
  • Workshops

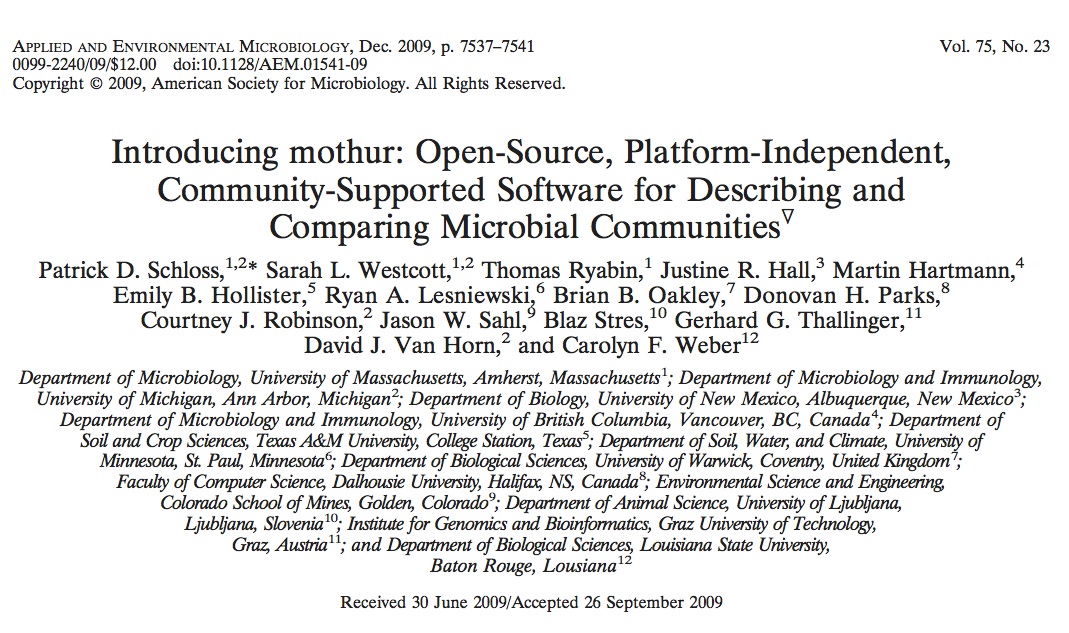

• Stand-alone, platform-independent, open source, community supported (-ive) software package
• Builds upon popularity of DOTUR, which was published in 2005 (1768 citations; as of 7/12/2016)
• The design is very PAUP*/R-ish
• We want to serve the people in coach, not the cockpit

• Will not serve "power users" - but they don't need us anyway
• Not always the same implementation
  • We do screw up on occasion
  • We can make things better and more accessible
• Too many options
  • This can be confusing
  • Allow people to make bad choices

AltMetrics:

• 5280 mailing list recipients
• 313 wiki articles
• 1672 forum members
• 13674 forum posts for 3634 topics

• Platforms
  • HiSeq/GAII - tons of paired 150 nt reads (goodluck!)
  • MiSeq - 12-15x10^6 250PE reads or 22-25x10^6 300PE reads
• Low complexity
  • Requires 5-10% PhiX spike in
  • Low cluster density
  • No need for staggered primers
• Need high quality data since we cannot resequence the same base more than twice

• Single read sequencing
• Sequence through primer and index (Illumina's protocol)
  • Waste base calls
  • Requires two PCR steps to get adapters on (chimeras?)
• Caporasso (EMP/AG/etc.)
  • Single index - large number of long primers
  • Generally being used with HiSeq (?)
• Kozich/Schloss
  • Dual index - considerably fewer primers required
  • Wet-lab SOP available

1. Data quality
2. Number of reads
3. Sequence length
4. Cost


• Traditional genomics approach builds contigs and so errors are “solved” by increased coverage
• This is not possible for 16S rRNA sequencing
  • The sequencer can artificially generate biodiversity
  • Would like to have as fine-scale a resolution as possible
  • Additional unique sequences makes data curation/processing more challenging

• Does a dual-index strategy work?
• Can we create a pipeline like we have for 454 that results in low error rate data?
• Is it possible to move beyond the Knight approach now that reads have gone from 150 to 250 to 300 bp to sequence longer regions?
• What are the principles of primer design so we can amplify other regions and genes?

* assumes: 15x10⁶ reads per run

• Amplified V34, V4, and V45 from mock community DNA and DNA isolated from human feces, mouse feces, and soil
• All samples amplified in triplicate with different barcodes (12 total samples)
• Have used same design/samples with other sequencing platforms (454, PacBio, IonTorrent)

• DNA from 21 bacterial isolates with genome sequences:
  Acinetobacter baumannii, Actinomyces odontolyticus, Bacillus cereus, Bacteroides vulgatus, Clostridium beijerinckii, Deinococcus radiodurans, Enterococcus faecalis, Escherichia coli, Helicobacter pylori, Lactobacillus gasseri, Listeria monocytogenes, Neisseria meningitidis, Porphyromonas gingivalis, Propionibacterium acnes, Pseudomonas aeruginosa, Rhodobacter sphaeroides, Staphylococcus aureus, Staphylococcus epidermidis, Streptococcus agalactiae, Streptococcus mutans, Streptococcus pneumoniae (Available through BEI: v3.1, HM-278D)
• Since we know the true 16S rRNA gene sequences we can measure the error rates
• Can remove chimeras a priori

• Trust MiSeq software to call indices
• Form contigs between read pairs and resolve mismatch based on better quality score (same score = N)
• Remove anything with…
  • Ambiguous base calls
  • Homopolymer length greater than 8
  • Doesn’t map to correct region

• Align forward and reverse reads to each other along with their quality scores
• If there is a mismatch the base a qual score that is greater than or equal to DQthreshold wins
• If it is less than DQthreshold the base becomes an N and the read will ultimately get rejected
• Contig length must make “sense”

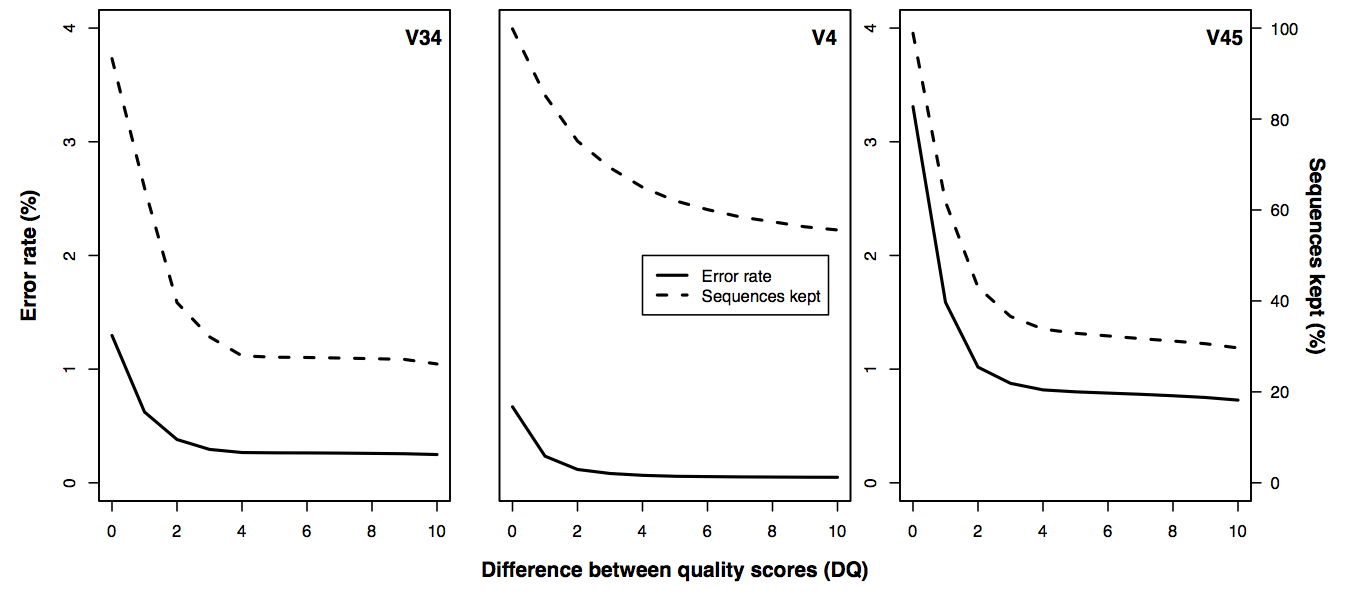

• The V4 region yields the best error rates and retains the most reads

• Require Q to be at least 6 points higher to break a mismatch


"V3-V5": Based on our 454 SOP using PyroNoise

All rarefied to 5,000 reads

(XX) – number of OTUs w/ no errors

Mock-PC has no chimeras

• "Richness" is correlated with sequencing depth / crap
• Error rates have a significant impact on number of observed OTUs

"V3-V5": Based on our 454 SOP using PyroNoise

Meh.

Note that the quality scores crap out around cycle 500

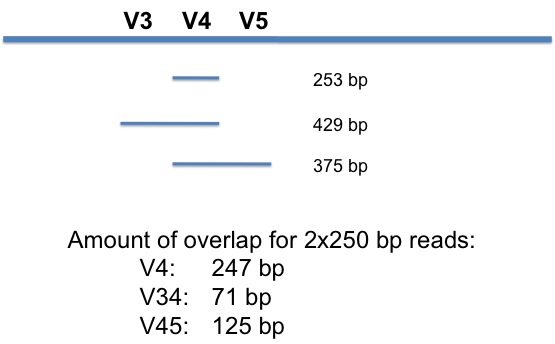

• Sequence reads must fully overlap with each other to get good error remediation
• If they don't...
  • Inflated number of unique reads / OTUs
  • Samples will look more different than they really are
  • Significant computational hurdles await
  • Cheaper to throw data away and resquence correctly than to buy sufficient RAM/time
• The V3 MiSeq kit isn't going to cut it for longer reads

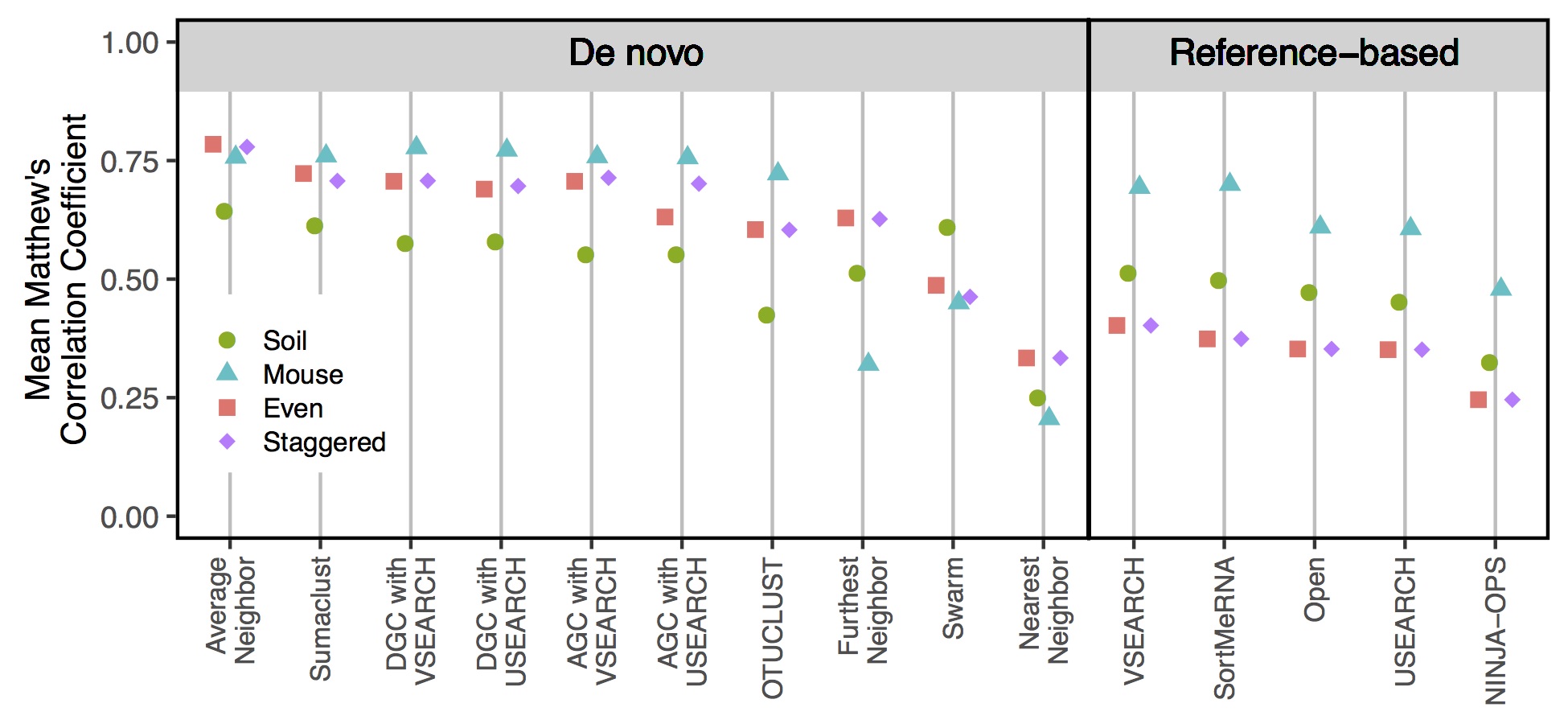

• Average neighbor clustering is consistently the best

• Load mothur-1.39.5 AMI
• Discuss project organization and data hygiene
• Run example dataset through MiSeq SOP
• Dataset comes from a study of C57BL/6 mice that were sampled for 6 months. Study was originally published in Gut Microbes
• Work through alpha and beta diversity analysis methods and population-level analyses 20
